Sony EFP camera fiber optic connection system consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of Sony EFP live production system, to achieve Forwarding SD / HD / 3G-SDI video, reverse video (SDI digital or analog composite CVBS signal), TALLY , Intercom, Remote control, GEN-lOCK, Ethernet signals 10KM transmission over an optical
Power supply :
the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A or V-shaped gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;
Features:
easily pass the Pathological test(extremely harsh environments)
SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
Uncompressed lossless transmission without delay;
More than 10KM transmission distance up to a maximum 80KM; when the opto-electric hybrid cable power supply the distance up to 250 meters.
Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, A-type or V-shaped with a flexible pinch;
Supports Sony RCP
Mic level input (with mute function) and amp functions (volume adjustment)
Tally / GPI output or charged dry output
Wide temperature range, low power consumption
Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
A type hanging plate for camera fiber optic adaptor:
V type hanging plate for camera fiber optic adaptor:
| Product Name | Bidi 3GSDI Camera Fiber Optical link system with tally,remote,intercom |
| Product Model | JM-EFP-S5 |
| SDI Connector | BNC |
| Optical Fiber | Dual FC fibers Compatible with multimode or single mode fiber |
| Power Supply | AC85-260V/50Hz(base side) /DC 12V,(camera side) |
| SDI Format | 1)All inputs and outputs are equalized and re-clocked |
| | 2)Immune to pathological patterns over the entire link budget and operating temperature range |
| | 3)SMPTE 424M, 292, 259 and DVB-ASI compliant |
| | 4)Supports embedded audio and data signals |
| | 5)Support SDSDI & HDSDI & 3GSDI, Support 270M & 1.485G & 2.97G SDI Video |
| Dimension | TX:V-Lock on camera end, RX: 19" 1U rack mount on base end |
| Working Environment | Working Temperature: 0 ℃~+85 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years warranty |
| Product description | Compliance: 3G, HD, SD compliance, SMPTE 424M, SMPTE 292M, SMPTE 259M |
| | 1 x 3G-HDSDI, forward direction (from tx) |
| | 1 x 3G-HDSDI, Reverse direction |
| | 1 x BB out,reverse analog signal |
| | 1x intercom( microphone audio and headphone in(from TX) |
| | 4xBidi line level audio in(from RX) |
| | 1 x RS422 data, full-duplex mode |
| | 1 x Tally |
| | Rx Dimension: 480 x 250 x 50 (mm) = 19' standard case |
| | Grosse weight is about 8.5kg, |
| | Extends distance: Single mode 10km / Multi mode 300 meters |
| | Packing in box: Transmitter x1, Receiver x 1, Power wire x 1, Use mannual x 1 |
| Transmitter ( Camera fiber adaptor end ) | Receiver ( Base end ) |
| Shape: V-lock | Shape: 1U Rack mount |
| Video: 1x 3G-HDSDI input, 1x 3G-HDSDI output, 1xCVBS output,BNC connector | Video: 1x 3G-HDSDI input, 1x 3G-HDSDI output, BNC connector;1xCVBS input,BNC connector |
| Intercom: 1x 4 Pin XLR, Male, | Intercom: 2x 3 Pin XLR,1xMale line level balanced input;1x Female, line level balanced audio output, |
| | 1xDB9 connector for balanced line level audio |
| Tally: 1x 4 Pin Aviation Connector, Dry contact closure, | Tally: 1x DB9 Connector, Dry contact closure, |
| Genlock:None | Genlock:None |
| Remote: 1x 8 Pin Connector,RS422 | Remote: 1x DB9 Connector,RS422 |
| Vol Control: Mute, Vol+, Vol-, | |
| Mic Control: Mic on/Off | |
| 1x dc/dc voltage regulator inside the camera end, | |
| Fiber : 2x FC | Fiber : 2x FC |
| Power supply: 12V | Power supply for base end: 1x AC 90-240V, |
| LED indicator: Mic, Fiber, SDI in, SDI out, PWR,BB out(CVBS out) | LED indicator:SDI in,SDI out,AV in,PWR |
|
|

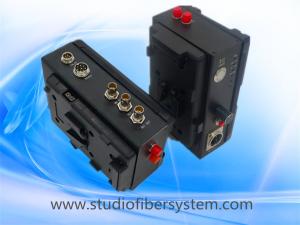

Sony Fiber system with bidi sdi,intercom, tally,remote,genlock,CVBS Images
|
